| Quantity: | |
|---|---|
FP20REG-DB
Fullas

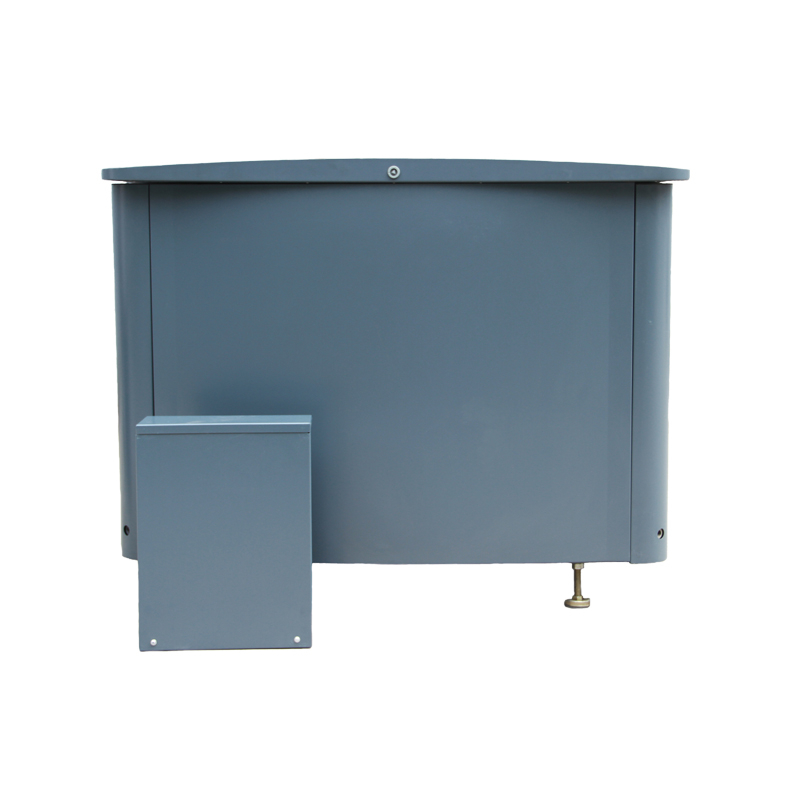

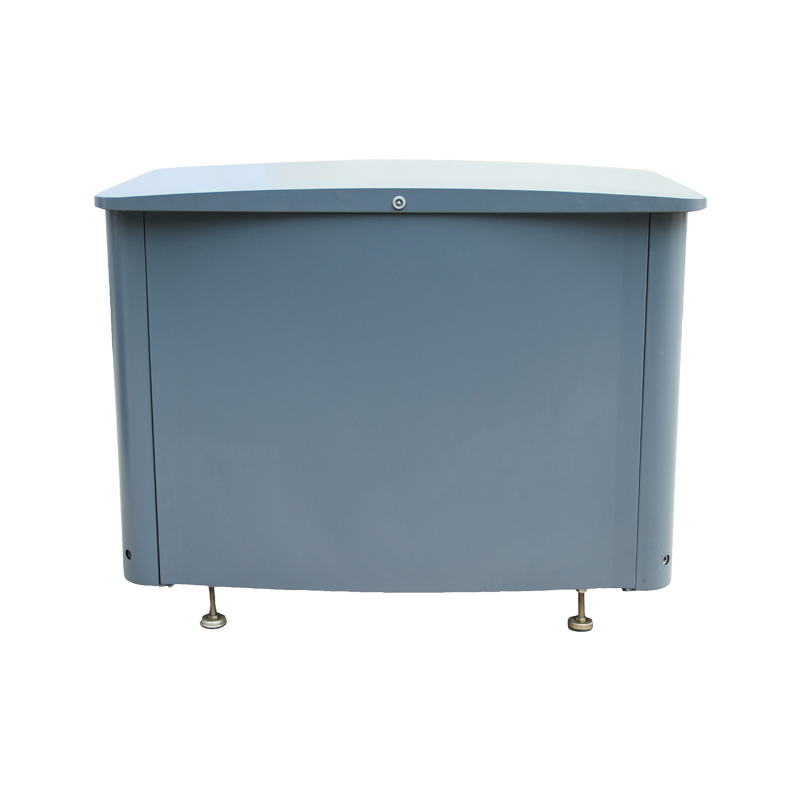

FP20REG-DB 18/20KW HOME STANDBY 2 IN 1, SUPER SILENT Home Standby LPG/NG Petrol GENERATOR with EPA
| MODEL# | FP20REG-DB |
| REGULATIONS | |
| ENGINE: EXHAUST EPA TIER 3 | YES |
| OUTPUT | |
| RATED (CONTINIOUS) (KW) LPG | 20 |
| RATED (CONTINIOUS) (KW) (NG) | 18 |
| AC VOLTAGE (VOLTS) | 120/240 |
| Amps @ 240V LPG | 83.3 |
| Amps @ 240VNG | 75 |
| PHASE | SINGLE PHASE |
| POWER FACTOR | 1.0 |
| Engine/Alternator RPM | 3600 |
| FREQUENCY (HZ) | 60 |
| ENGINE | |
| ENGINE PART # | 465QR |
| VOLUME (cc) | 998 |
| COMPRESSION RATIO | 9.5:1 |
| IGNITION SYSTEM | ECM ELECTRONIC IGNITION |
| ELECTRIC START | YES |
| STATOR TYPE | QDY112 12V 0.8KW |
| FUEL TYPE | LPG/NG |
| CYLINDER BORE&STROKE | L4-65.5×74mm |
| ASPIRATION Type | NATURAL ASPIRATION |
| OIL CAPACITY | 4.0L/244.1in³ |
| SPIN ON OIL FILTER | YES |
| CYLINDER BLOCK | CAST IRON |
| SLEEVE | CAST IRON |
| ENGINE ALTEERNATOR | 14V, 70A CHARGING ALTERNATOR |
| COOLING SYSTEM | LIQUID COOLED |
| OVER TEMP SHUTDOWN | YES |
| LOW OIL PRESSURE SHUTDOWN | YES |
| ALTERNATOR | |
| VOLT. REG. SYSTEM | AVR |
| ALTERNATOR TYPE | Synchronous Generator, Rotating Magnetic Field |
| EXCITATION TYPE | BRUSH |
| THD@FULL LOAD | ≤ 5% |
| NO. OF POLES | TWO POLE |
| INSULATION CLASS | F |
| STATOR WINDING MATERIAL | COPPER |
| ROTOR WINDING MATERIAL | COPPER |
| CONNECTION METHOD | DIRECT COUPLED |
| CONTROLLER | |
| LOCATION IN FRAME | INSIDE OF ENCLOSURE, ABOVE ALTERNATOR |
| MANUFACTURER/PART NO. | HSC940 |
| AUTO/MANUAL/OFF | YES |
| GENERATOR VOLTAGE SENSING | YES |
| LOW OIL PRESSURE SHUTDOWN | YES |
| UNDER FREQUENCY PROTECTION | YES |
| OVER FREQUENCY PROTECTION | YES |
| BATTERY CHARGER | YES |
| ELECTRONIC GOVERNOR | YES |
| GROUND STUD | YES |
| GROUNDING SYSTEM | FRAME GROUNDED |
| CONTROL PANEL HOUSING COLOR | BLACK |
| UNIT | |
| CERTIFICATION | ETL/CETL /EPA |
| WARRANTY - USA/Canada | 5 Years or 1000 Hours |
| CERTIFICATION | No certificates |
| WARRANTY - Other 60Hz Countries | 2 Years or 1000 Hours |
| PROTECTION LEVEL | IP 23 |
| EMERGENCY STOP SWITCH | YES |
| FUEL REGULATOR | TWO SOLENOID VALVES |
| ENCLOSED MUFFLER | YES |
| COMPACT ATTRACTIVE ENCLOSURE | YES |
| NOISE LEVEL @ FULL LOAD | 70 dBA |
| Fuel Consumption @ Full Load LPG cu. ft/hr(m3/hr) | 148.3(4.2) |
| Fuel Consumption @ Full Load NG cu. ft/hr(m3/hr) | 286(8.1) |
| FUEL PRESSURE Kpa (in.H2O) LPG | 1.7-3.5 (7-14) |
| FUEL PRESSURE Kpa (in.H2O) NG | 1.3-3.5 (5-14) |
| UNIT DIMENSION(L" x W" x H") | 1376×810×960 |
| PACKAGE DIMENSION (L" x W" x H") | 1470×900×1100 |
| NET WEIGHT(lbs/kg) | 772/350 |
| GROSS WEIGHT(lbs/kg) | 849/385 |
| 20/40 CONTAINER LOADING | 14/30 |
| ACCESSORIES | |
| OIL | 4.0L(OIL EXCLUDED) |
| OIL FUNNEL | YES, IF NEED |
| TOOL KIT | YES |
| BATTERY | OPTIONAL(sold seperately) |
| BATTERY WARMER | OPTIONAL(sold seperately) |
| OIL FILTER HEATER | OPTIONAL(sold seperately) |
| MESSAGE MODUEL FUNTION | OPTIONAL(sold seperately) |
| 200A ATS | |
| AMPS | 200A |
| FREQUENCY | 60HZ |
| SIZE | 520*390*220mm / 20.47*15.35*8.66in. |
| GROSS WEIGHT | 20kgs / 44lbs |
Home Standby Series
Packing
A home standby generator is a backup power system that is permanently installed outside a home or building. It is designed to automatically provide electricity during a power outage, ensuring that essential appliances and systems continue to function. Here are some features and considerations of a home standby generator:
1. Automatic Operation: One of the key features of a home standby generator is its ability to automatically detect a power outage and start supplying electricity to the home within seconds. This is achieved through an automatic transfer switch that monitors the utility power and switches to generator power when an outage is detected. Once the main power is restored, the generator will automatically shut off and transfer the load back to the utility power.
2. Power Output: Home standby generators come in various power output capacities, typically ranging from 7 kilowatts to over 20 kilowatts. The power output should be chosen based on the electrical load requirements of the home. It is important to consider the essential appliances and systems you want to power during an outage, such as refrigerators, heating or cooling systems, lights, and medical equipment.
3. Fuel Source: Home standby generators can be powered by different fuel sources, including natural gas, propane, or diesel. Natural gas and propane are popular choices due to their availability and convenience, as they can be directly connected to the home's existing gas line. Diesel generators are less common for home use but may be suitable in certain situations.
4. Noise Level: Home standby generators are typically designed to operate quietly, especially compared to portable generators. They are equipped with soundproofing materials and mufflers to reduce noise levels. However, it is important to consider the noise regulations in your area and choose a generator that complies with local noise restrictions.
5. Installation: Home standby generators require professional installation by a licensed electrician or generator dealer. The generator is typically installed outside the home on a concrete pad or a suitable location, and it is connected to the electrical panel through a transfer switch. The installation process may involve obtaining permits and complying with local building codes.
6. Maintenance and Servicing: Home standby generators require regular maintenance to ensure reliable operation during an outage. This includes oil and filter changes, battery checks, and general inspections of the generator components. Many home standby generators come with self-diagnostic features that alert the owner or dealer when maintenance is required.
7. Cost: Home standby generators are generally more expensive than portable generators due to their larger capacity, automatic operation, and professional installation requirements. The cost can vary depending on factors such as the power output, fuel source, brand, and additional features. It is important to consider your power requirements, budget, and the overall value you seek in terms of convenience and reliability.
When choosing a home standby generator, consider factors such as power output, fuel source, noise levels, installation requirements, maintenance needs, and cost. It is recommended to consult with a professional or generator dealer to assess your power needs, determine the appropriate generator size, and ensure compliance with local regulations and building codes.
