FP3500
Fullas

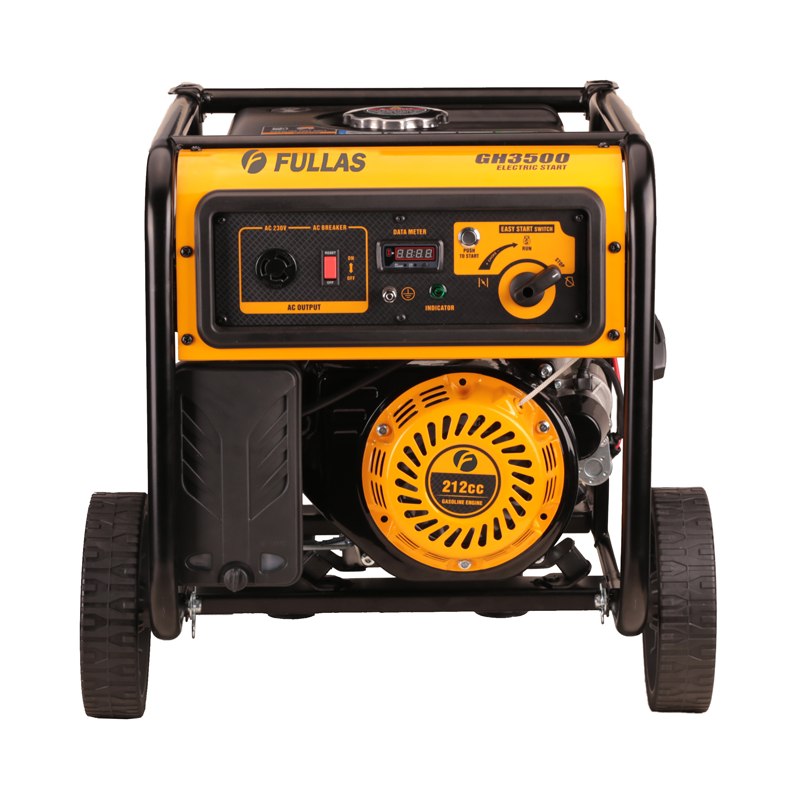

Fullas FP3500GH New Design 3KW Portable Gasoline/Petrol Generator Powered by G210F(D)A
Features
Metal control panel design;
2.Low of oil protection,100% copper self-excitation synchronization alternator;
3.AVR technology,overload,over-current protection;
4.High volume fuel tank,high strength frame;
5.Manual/Electric start optional;
Production line
Generator testing before offline
Products parameter
| Main parameters | FP2500GH | FP3500GH | |
| AC power parameters | AC output rated power | 2000W | 2700W |
| AC output maximum power | 2300W | 3000W | |
| Rated voltage (dual voltage) | 230V | 230V | |
| Rated frequency | 50Hz | 50Hz | |
| THD (at Pe) resistive load | <25% | <25% | |
| Generator parameters | Dimensions (mm) (without wheels and pushers) | 555x430x440 | 555x430x440 |
| Fuel tank capacity | 9L | 9L | |
| Net weight (kg) | 39.1 | 47.2 | |
| battery | 7Ah Lead-acid batteries | 7Ah Lead-acid batteries | |
| Rotating speed | 3000rpm | 3000rpm | |
| Insulation class | F class | F class | |
| Start method | Recoil/ electric start | Recoil/ electric start | |
| Use environment | 10ºC~+40ºC | 10ºC~+40ºC | |
| Machine reliability | 85%Pe constant load durability 800 hours | 85%Pe constant load durability 800 hours | |
| Engine parameters | Engine model | LC168F(D)-2 | G210F(D)A |
| choke | Manual choke | Manual choke | |
| Net power (kW/rpm) | 4.0/3000 | 4.7/3000 | |
| Speed control system | Mechanical speed regulation | Mechanical speed regulation | |
| Displacement | 196cc | 212cc | |
| Fuel volume | 0.6L | 0.6L | |
| fuel control system | Carburetor | Carburetor | |
| Fuel consumption (g/kW.h) | 50%Pe | <585<> | <585<> |
| 100%Pe | <432<> | <432<> | |
| Running time (h) | 50%Pe | 8 | 8 |
| 100%Pe | 6 | 6 | |
Company Information
Aiming at supplying global customers high quality machinery products, Depending on 15 years of hard work, Chongqing Fullas Industry Co.,ltd integrates abundant Chongqing machinery resources and offer customers one- stop solutions! Our main products include engine, generator, water pump, tiller, garden tool and various kinds of spare parts. We are the authorized supplier of finished products powered by Kohler. Fullas products have been widely exported to North America, Europe,Middle East and Asia, etc.
"Full Devotion, Innovation, Customer First and People Orientation" is Fullas business philosophy. We warmly welcome global customers to contact with us for fruitful business cooperation.
FAQ
| Q1: Can we place a trial order to do some test? | |
| A: Sure, we have tested our products for many terms, also you can do more tests. We would like more new customers to place trial order. | |
| Q2: Do you accept OEM order? | |
| A: Yes, of course. We provide various OEM services. You can customize your favorite models or design a new model with our professional technological support. Our R&D department and manufacturing department will do together to ensure the quality and on time delivery. | |
| Q3: What is your terms of payment? | |
| A: T/T, L/C at sight, and Western Union are available for our company. | |
| Q4: What is yoUr terms of delivery? | |
| A: EXW, FOB, CFR, CIF, DDU. ...... | |
| Q5: How about your delivery time? | |
| A: 35 days for container order, 10-15 days for sample order. The specific delivery time depends on the items and the quantity of your order. | |
| Q6 Do you offer guarantee for the products? | |
| A: Yes, we offer 1 year warranty to our products. | |
